Laser cladding, also known as laser metal deposition (LMD), is a technique for applying a layer of material to a substrate. The coating material is melted onto the substrate’s surface using a laser as the heat source. It is primarily used for surface modification, repair, and enhancement of components to improve their wear resistance, corrosion resistance, and mechanical properties.

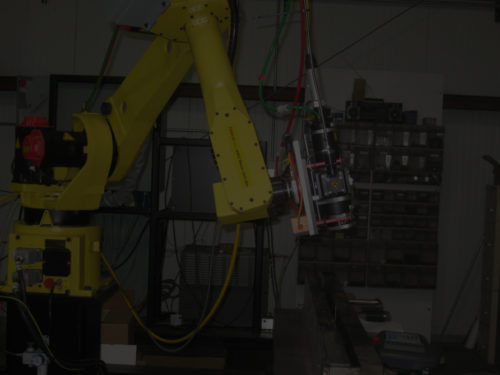

Titanova specializes in laser cladding, utilizing state-of-the-art robotic systems integrated with direct diode and fiber-coupled lasers. It provides precise control over deposition, ensuring minimal dilution and maximum adherence to metallurgical requirements. This allows us to deliver solutions with unparalleled quality and efficiency in industrial applications.
How Laser Cladding Works
Laser cladding involves a series of steps to achieve a high-quality coating with the desired surface properties. The key stages include:
-
1. Substrate Preparation
The substrate’s surface is first cleaned to remove contaminants such as oils, oxides, and dirt using pre-machining a thin layer of base material off.
-
2. Material Feeding
The cladding material, either powders or wires, is chosen based on the desired surface properties, such as hardness, corrosion resistance, or wear resistance. Then, a suitable feeding system like a powder or wire feeder delivers the cladding material into the laser beam's path.
-

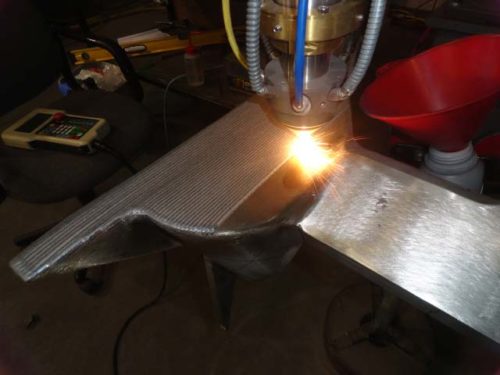

3. Cladding Process
The laser beam is focused on the substrate, generating a high energy density that melts both the cladding material and substrate layer. This process forms a molten pool where the cladding material mixes with a controlled and thin portion of the substrate.
As the laser moves across the substrate, the molten cladding material solidifies rapidly. This leads to fine microstructures in the clad layer, enhancing its mechanical and corrosion properties.
-
4. Post-Cladding Treatment
After cladding, the newly formed clad layer undergoes inspection for defects such as porosity, cracks, or inadequate bonding. This can be done using visual methods, ultrasonic testing, or X-ray inspection.
If needed, the surface of the clad layer is finished by machining or grinding to achieve the mechanical surface roughness. In some cases, a heat treatment might also be applied to relieve residual stresses or further improve the clad layer's properties.
Advantages of Laser Cladding
Laser cladding offers several advantages in various industrial applications, including:
Enhanced Properties
Laser cladding improves the surface properties of components by depositing a layer of material that is harder and more wear- or corrosion-resistant than the base material. This extends the lifespan and durability of components.
High Precision and Control
The precision of the laser cladding process allows for accurate control over the thickness and geometry of the deposited layer. As a result, manufacturers can achieve exacting specifications without the variability often associated with traditional welding or coating methods.
Versatility
Laser cladding dissimilar metal alloy materials. This allows it to be used across multiple industries, from aerospace and automotive to medical devices and tooling. In addition, different types of materials can be combined or layered to achieve specific performance characteristics, expanding the range of applications for this manufacturing technique.
Complex Geometries
The laser beam’s precise control and focused nature enable the fabrication of complex geometries and intricate designs A.K.A. laser additive manufacturing. This is particularly advantageous in industries that require customized components or prototypes with specific shapes and dimensions. Laser cladding can build up material layer by layer, following a digital design file, to produce parts with intricate features and tight tolerances.
Repair and Restoration
This technique is widely used to repair worn-out or damaged components, extending their operational life and reducing replacement costs. By selectively adding material to worn surfaces or damaged areas, laser cladding restores the component’s original dimensions with enhanced properties. This is particularly valuable for critical parts in industrial equipment, pump, and turbines, molds.
Applications of Laser Cladding
Laser cladding boasts versatility and effectiveness that makes it useful for applications across various industries. Here are some examples:
- Automotive: This method can enhance the wear resistance of engine components like crankshafts, camshafts, and cylinder liners. It can also repair worn-out parts like drive train and shafts by depositing unique material precisely where needed, extending their service life.
- Aerospace:Laser cladding repairs or builds up worn or damaged turbine components, ensuring they meet stringent performance and safety standards. Coatings also help protect aerospace components from corrosive conditions.
- Oil, gas and mining: This technique enhances the wear resistance of drilling equipment, drill bits and components subjected to abrasion and corrosion in drilling operations.
- Tool and die making: Laser cladding can repair and modify molds and dies used in injection molding, forging, and extrusion processes.
- Power generation: Laser cladding can repair and protect gas turbine components, such as blades and combustion chamber parts. It can also repair worn-out components and improve their resistance to high temperatures and corrosive environments.
- Marine: This method provides corrosion-resistant coatings for ship propellers, shafts, and valves, protecting them from seawater exposure and enhancing durability.
- Mining: This process repairs worn parts such as hydraulic pistons and shafts in mining operations, extending their service life in harsh conditions.
Advancements in the Laser Cladding Industry
Laser cladding technology has seen significant advancements in recent years. Here are some notable advancements:
